Some assembly required: attaching a sectional warp beam to the Glimakra Ideal

After getting the collapse scarves off the loom, I could work on upgrading the warp beams. There was nothing wrong with the existing warp beams, but I lusted after both a sectional warp beam and a second back beam, and I was able to indulge myself. It had taken some researching and effort to find a supplier, but I discovered that it is possible to obtain both for a 100cm Glimakra Ideal. I'd gone as far as contacting Glimakra directly to deal with them, but at literally the last minute Fibrecrafts UK came in with a quote cheaper than ordering directly from Glimakra - the difference in paying UK VAT and Swedish VAT.

The sectional warp beam kit consists of a number of pre-drilled wooden planks, and a whole lot of metal dividers to seperate the warp. That, together with a few screws, is it. It doesn't look like a lot for the money you pay, but I had made the decision that I like what Glimakra stand for, and that it was worth paying the money to support them and to keep my loom standard.

The dividers are simply thin metal rods, bent so that they're slightly longer on one side than the other:


These are placed into the slots on the beams long end first then short end sqeezed into the other side, and hammered in. I did this with a scrap of wood and a wooden mallet, to reduce the impact on the dividers. I laid the wood over the dividers already in, to keep them all about the same length. Resist the temptation to only hammer them in a little, you're going to have to hammer them in about 1/3 of their length for them to clear the back beam. I also did this on the carpet of the living room, to reduce the impact on the wooden floors of my studio.



The first few in, an awful lot more to go:


Here's the four wooden dividers, screwed to the warp beam. Normally, if you just buy a sectional warp beam kit, you'd be screwing this to your existing back beam. In my case, I'd also bought a second back beam kit and because the existing back beam is perfectly functional with a cloth apron and I wanted to keep that intact, I chose to screw the sectional warp kit to the new back beam. You can buy sectional warp beams with 1" or 2" divisions. I work a lot with fine threads and wanted increased design opportunities, so I opted to go for 1" divisions.


You'll note in the image above that there are some dividers missing at the right side of the beam. There was a miscount when the dividers were supplied, and I found myself short by 6. I contacted Glimakra and the lovely people there were most apologetic, and had the extra dividers in my mailbox within a few days. The other thing to note in the image above is the holes in the warp beam for the cloth apron. Because the beam is octagonal, there is a right way and a wrong way to attach the sectional planks, if you wish to retain use of those drill holes. The right way is offset from the as you see above. There are no holes drilled in the warp beam for attaching the sectional planks. You could drill them, but because the screws are self-tapping, I found this unneccesary.

Next came disassembly of the loom. Most people won't have to pull it apart too much to get the warp beam out (in fact in theory it's possible to attach the sectional warp planks to the back beam while it's still on the loom), but because I wanted to remove the existing warp beam and replace it with the new one, I had to disassemble the ratchet side of the loom. After removing the old back beam, I could insert the new sectional beam.

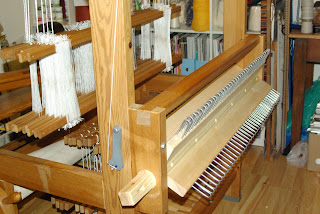

All that was then left to do was to replace the back breast beam, handle and chocks. You can certainly see in this picture where the pawl for the ratchet normally sits!


Finally, it was necessary to sit behind the loom and gently rotate the sectional warp beam, marking any dividers that were too tall to clear the back breast beam, and hammer them down to a suitable height. I had been very conservative with my hammering at the earlier stage, wanting to maximise the amount of depth I could roll a warp, which meant that I spent a log time hammering at this stage to get all of the dividers even and to the correct depth.

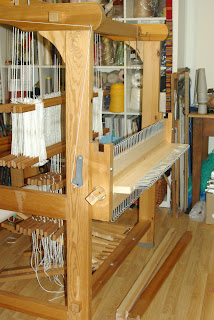

And it's as simple as that! The honeycomb dishcloths was the first warp I've put on the sectional warp beam, although I did that by hand rather than using the tension box. I found that the back breast beam was slightly too wide for the tension box, so I wound each 1" bout of warp individually on my warping mill and ran each one onto the beam, tensioning by hand over the castle as I went. It worked.

Another time, I'll post about using the tension box and also attaching the second back beam to the loom. Fitting the second back beam to the Ideal is not as simple as the sectional warp beam, because I've discovered that there isn't quite enough real estate for it to bolt on as designed - and there also isn't enough real estate for the second back breast beam and the tension box to all fit on at once either. There will be some retrofitting to be done.
